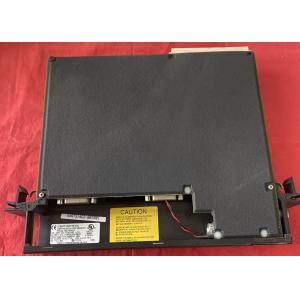

GE Fanuc IC697CGR772 Hot Standby Genius Dual Bus CPU 486DX4 2K Discrete I/O 512K byte

Overview
The IC697CGR772 is a hot-standby, dual-bus Central Processing Unit (CPU) module belonging to the Series 90-70 Programmable Logic Controller (PLC) platform. Originally manufactured by GE Fanuc Automation, the module is now part of Emerson Automation following an acquisition. It is specifically designed for applications requiring high availability and fault tolerance—when paired with another identical CPU, it delivers key redundant capabilities: bumpless transfer, automatic synchronization, redundant backup communication, one-scan switching, and elimination of single points of failure.

Core Hardware & Performance
Processing & Math Capabilities
At its core, the IC697CGR772 features an embedded 80486DX4 microprocessor running at 96 MHz. It achieves a Boolean execution time of 0.4 microseconds per Boolean function and supports 32-bit floating-point math calculations—enabling efficient handling of complex industrial applications. The module also boasts a fast scan time of 5.9 milliseconds, ensuring responsive real-time control.

Memory & I/O Capacity
Memory: Equipped with 512 KB of Random Access Memory (RAM), including battery-backed CMOS RAM maintained by the IC697ACC701 lithium battery. This replaceable battery also preserves the module’s date and time. A built-in memory protection switch prevents unintended modification of memory contents when enabled.
I/O Handling: Supports up to 2,048 discrete inputs, 2,048 discrete outputs, and 8,000 analog I/Os—making it suitable for large-scale automation setups. It is fully compatible with all GE Fanuc IC660/IC661 and IC697 I/O products, enabling the implementation of complete, flexible automation solutions.

Communication & Connectivity
The IC697CGR772 offers versatile communication options to support point-to-point and multi-drop connections:

Serial Ports: 1x RS232 port and 2x RS485 interfaces (both RS485 ports are located on the module’s front panel). All serial ports natively support the GE SNP protocol.

• Network Port: An RJ45 port is included for network connections.
• Configuration: The CPU can be easily connected to a personal computer for setup and programming. Programming is supported via MS-DOS-based software running on Windows operating systems.

Operational Controls & Status Monitoring
Control Features

• Manual Switching: A dedicated feature allows manual switching between communication modules for flexible network management.
• Operation Modes: A 3-position switch enables operators to quickly adjust the module’s operating mode (e.g., RUN/STOP).
• Status Indicators

The front of the module is fitted with 7 LED indicators, providing real-time visibility into various system statuses and events (e.g., power, communication, fault conditions). Additionally, the Module OK LED serves as a battery health monitor: if a low battery is detected, the LED will not remain lit after power-up.

Technical Specifications

• Operating Temperature Range: 0°C to 50°C
• Power Requirements: 5 V DC, 3.1 A (nominal current)
• Elapsed Time Clock Accuracy: Maximum 0.01%
• Battery: IC697ACC701 replaceable lithium battery (for RAM backup, date, and time preservation)
